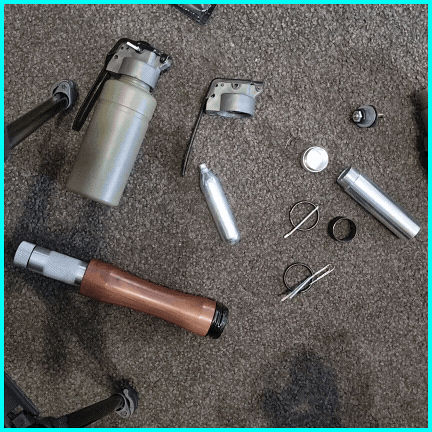

STANDARD CORE
assembly pt-1
Initial Assembly
- Remove BLACK COLLAR from the UPPER ASSEMBLY
- Insert the PUNCH UNIT and HAND TIGHTEN the BLACK COLLAR.
- Screw on the MAIN CORE HAND TIGHT

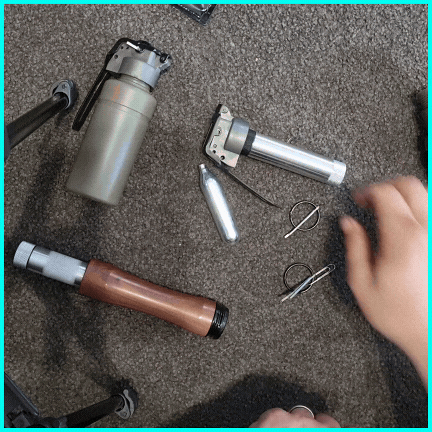

Assembly Pt-2
Game Ready Assembly
- Lift your SPOON and PULL BACK your striker. Insert pin to hold back the STRIKER, Lower your SPOON, and re-insert your PIN THROUGH THE SPOON to secure.
- Unscrew the MAIN CORE from the UPPER ASSEMBLY and INSERT YOUR Co2 then put it back on, HAND TIGHT.

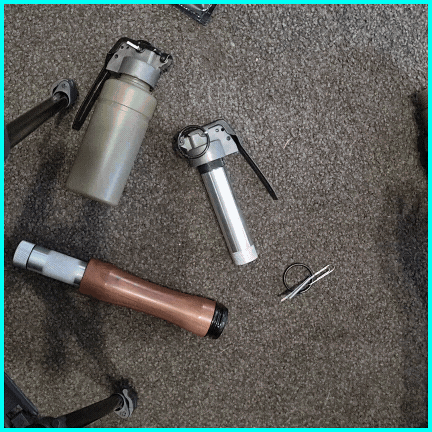

Assembly PT-3.1
Shell - Warm Environment
- Simply SCREW YOUR SHELL on HAND TIGHT to the UPPER ASSEMBLY and you're good to go.

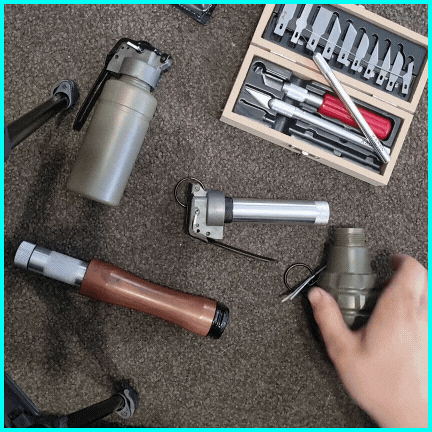

Assembly PT-3.2
Shell - Cold Environment
- With colder environments, your Co2 Cartridge may not produce enough pressure to burst your shell.
- We recommend scoring your shells along the burst seam so it takes less pressure to activate. We also recommend doing this for Dumb-bell Shells, regardless of temperature, as the shells are a little thicker.
- After scoring, screw your shell on HAND TIGHT into the upper assembly, and youre good to go.
NOTE: THIS DOES NOT APPLY TO THE TRIPWIRE SHELLS.
THEY ARE DESIGNED TO BURST WITH VERY LITTLE PRESSURE.
